IOT-GATE-iMX7 Overview

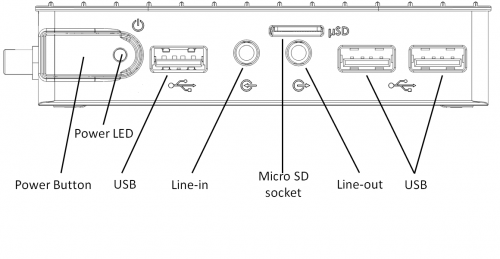

Front view

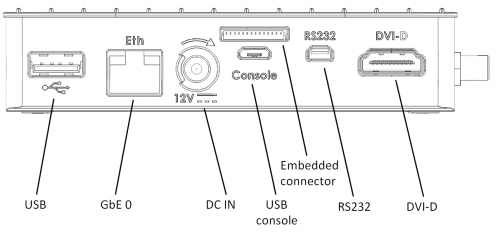

Rear view



Side view




Quick Setup

  • Connect the display to the IOT-GATE-iMX7 DVI-D display output using a standard HDMI cable.
  • Connect USB mouse and keyboard devices to the IOT-GATE-iMX7 USB connectors.
  • Insert the AC power-supply blade into the power supply unit.
  • Insert the power supply plug into the IOT-GATE-iMX7 power jack. Turn the power plug clock-wise to lock the plug.
  • Plug the power supply unit into an AC outlet. IOT-GATE-iMX7 will turn on and boot.

First Boot

IOT-GATE-iMX7 will automatically boot into the OS. Log in using the following user details:

  • Username: root
  • Password: 111111
