IOT-GATE-IMX8PV2: Getting Started
Quick Setup
- Connect a USB cable between host PC and IOT-GATE-IMX8PV2 micro-USB console DBG connector.
- On your host PC, start a terminal emulation program (such as Tera Term or PuTTy) with the following serial port settings:
Baud Rate Data Bits Stop Bits Parity Flow Control 115200 8 1 none none
- Connect power to IOT-GATE-IMX8PV2 using one of the following options:
- Use the Compulab IOTG2-ACC-PSUTB3 PSU. Insert the PSU plug into the IOT-GATE-IMX8PV2 DC input terminal block.
- Use any 12V–24V DC power supply. Connect PSU wires to the IOT-GATE-IMX8PV2 DC terminal block plug and ensure correct polarity.
- Once power is connected, IOT-GATE-IMX8PV2 will turn on and boot into the O/S.
- To login into Linux use "compulab" as username and set the password per first login instructions.
|
Initial login prompt is not accessible on HDMI monitor (GUI terminal) |
IOT-GATE-IMX8PV2 Overview

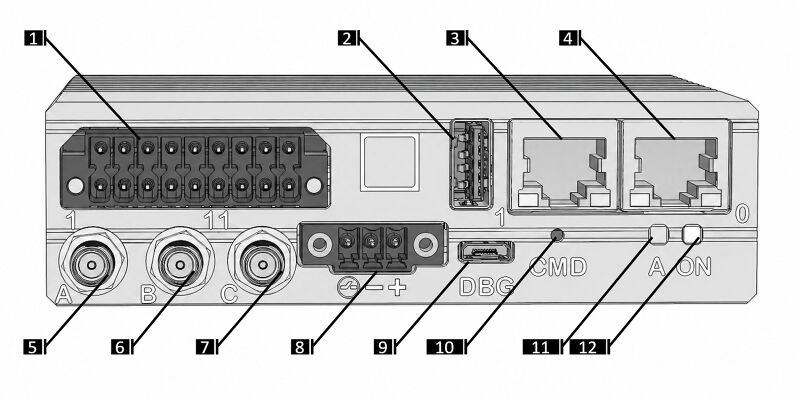

Main panel layout
| Figure | Callout | Function |
|
1 | Industrial I/O terminal block Mating connector is included with the gateway |
| 2 | USB3.0 port, type-A connector | |
| 3 | ETH1 1000Mbit port, RJ45 connector | |
| 4 | ETH0 1000Mbit port, RJ45 connector. Supports PoE 802.3af (powered device) | |
| 5 | Antenna connector A (LTE main) | |
| 6 | Antenna connector B (WiFi/BT main / GNSS) | |
| 7 | Antenna connector C (WiFi aux / Mesh) | |
| 8 | DC power input connector Mating connector is included with the gateway | |
| 9 | Console connector, micro-USB type | |
| 10 | User programmable recessed push-button | |
| 11 | User programmable LED A (green / red) | |
| 12 | System status LED (blue / amber) |

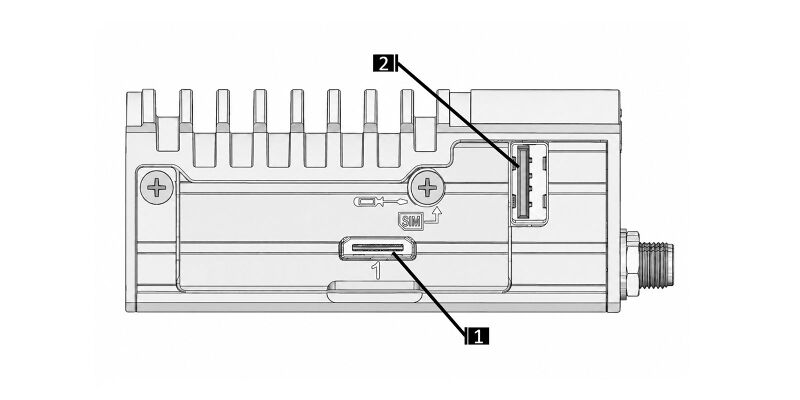

Side panel layout
| Figure | Callout | Function |
 |
1 | Display output, mini HDMI connector |
| 2 | USB2.0 port, type-A connector | |

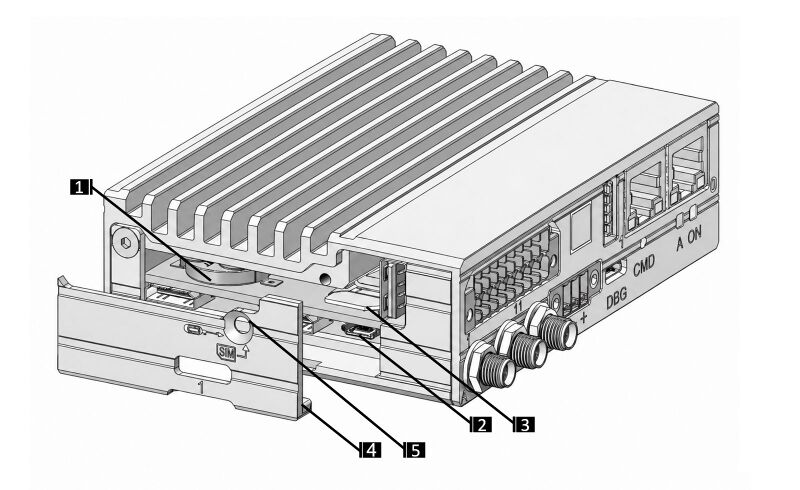

Service bay layout
| Figure | Callout | Function |
 |
1 | RTC battery holder |
| 2 | USB programming port, micro-USB connector | |
| 3 | Micro-SIM card socket. | |
| 4 | Service bay door | |
| 5 | Service bay screw | |
