IOT-GATE-RPi: Getting Started

From Compulab Mediawiki
Revision as of 15:13, 7 May 2018 by Igor (talk)
(diff) ← Older revision | Latest revision (diff) | Newer revision → (diff)
Jump to: navigation, search

IOT-GATE-RPi Overview

Front view & Rear view

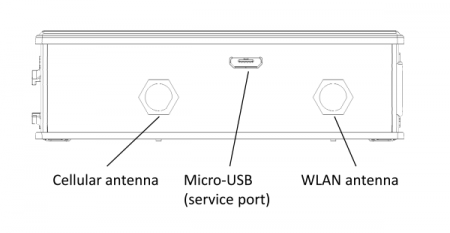

Side view




Service bay view


Quick Setup

  • Connect HDMI monitor to the IOT-GATE-RPi HDMI display output using a standard HDMI cable.
  • Connect USB mouse and keyboard devices to the IOT-GATE-RPi USB connectors.
  • Insert the AC power-supply blade into the power supply unit.
  • Insert the power supply plug into the IOT-GATE-RPi power jack. Turn the power plug clockwise to lock the plug.
  • IOT-GATE-iMX7 will automatically boot into the OS.
